Model Series
• LH-NP09M9 / LH-NP09M7 / LH-NP09M4
• LH-NP10M9 / LH-NP10M7 / LH-NP10M4
• LH-NP12M9 / LH-NP12M7 / LH-NP12M4
• LH-NP14M9 / LH-NP14M7 / LH-NP14M4
• LH-NP15M9 / LH-NP15M7 / LH-NP15M4
• LH-NP18M9 / LH-NP18M7 / LH-NP18M4
• LH-NP20M9 / LH-NP20M7 / LH-NP20M4
• LH-NP25M9 / LH-NP25M7 / LH-NP25M4
• LH-NP30M9 / LH-NP30M7 / LH-NP30M4

Pixel Configuration
• SMD LED

Pixel Pitch
• LH-NP09: 0.968 mm
• LH-NP10: 1.00 mm
• LH-NP12: 1.25 mm
• LH-NP14: 1.579 mm
• LH-NP15: 1.46 mm
• LH-NP18: 1.875 mm
• LH-NP20: 2.00 mm
• LH-NP25: 2.50 mm

Module Resolution
• LH-NP09: 248 × 279 Pixels
• LH-NP10: 240 × 270 Pixels
• LH-NP12: 192 × 216 Pixels
• LH-NP14: 152 × 171 Pixels
• LH-NP15: 164 × 184 Pixels
• LH-NP18: 128 × 144 Pixels
• LH-NP20: 120 × 135 Pixels
• LH-NP25: 96 × 108 Pixels

Module Dimensions
• 240 × 270 × 13 mm

Module Weight
• 0.38 kg

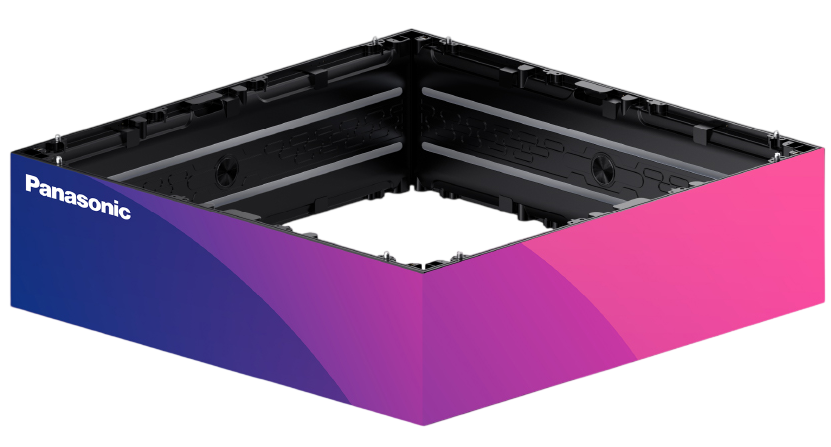

Modules per Cabinet
• 4 × 1 Modules

Cabinet Resolution
• LH-NP09: 992 × 279 Pixels
• LH-NP10: 960 × 270 Pixels
• LH-NP12: 768 × 216 Pixels
• LH-NP14: 608 × 171 Pixels
• LH-NP15: 656 × 184 Pixels
• LH-NP18: 512 × 144 Pixels
• LH-NP20: 480 × 135 Pixels
• LH-NP25: 384 × 108 Pixels

Cabinet Dimensions (W × H × D)
• 960 × 270 × 13 mm

Cabinet Surface Area
• 0.2592 m²

Cabinet Weight
• 20 kg/m²

Pixel Density
• LH-NP09: 1,067,208 Pixels/m²
• LH-NP10: 1,000,000 Pixels/m²
• LH-NP12: 640,000 Pixels/m²
• LH-NP14: 401,084 Pixels/m²
• LH-NP15: 465,679 Pixels/m²
• LH-NP18: 284,444 Pixels/m²
• LH-NP20: 250,000 Pixels/m²
• LH-NP25: 160,000 Pixels/m²
• LH-NP30: 111,111 Pixels/m²

Cabinet Flatness
• ≤0.3 mm

Brightness Calibration
• Yes

Color Calibration
• Yes

Brightness
• 800 Nits (After Calibration)

Color Temperature
• Adjustable

Viewing Angle
• Horizontal: 160°
• Vertical: 140°

Brightness Uniformity
• ≥97%

Contrast Ratio
• 7000:1

Maximum Power Consumption
• 550 W/m²

Average Power Consumption
• 200–230 W/m² (Depending on Model)

Power Supply
• AC 200–240V, 50Hz

Frame Rate
• 50 / 60 Hz

Refresh Rate
• ≥3840 Hz

LED Lifetime
• Up to 100,000 Hours

Operating Temperature
• -20°C to +40°C

Storage Temperature
• -30°C to +60°C

Operating Humidity
• 10%–80% RH (Non-Condensing)

Storage Humidity
• 10%–85% RH (Non-Condensing)
