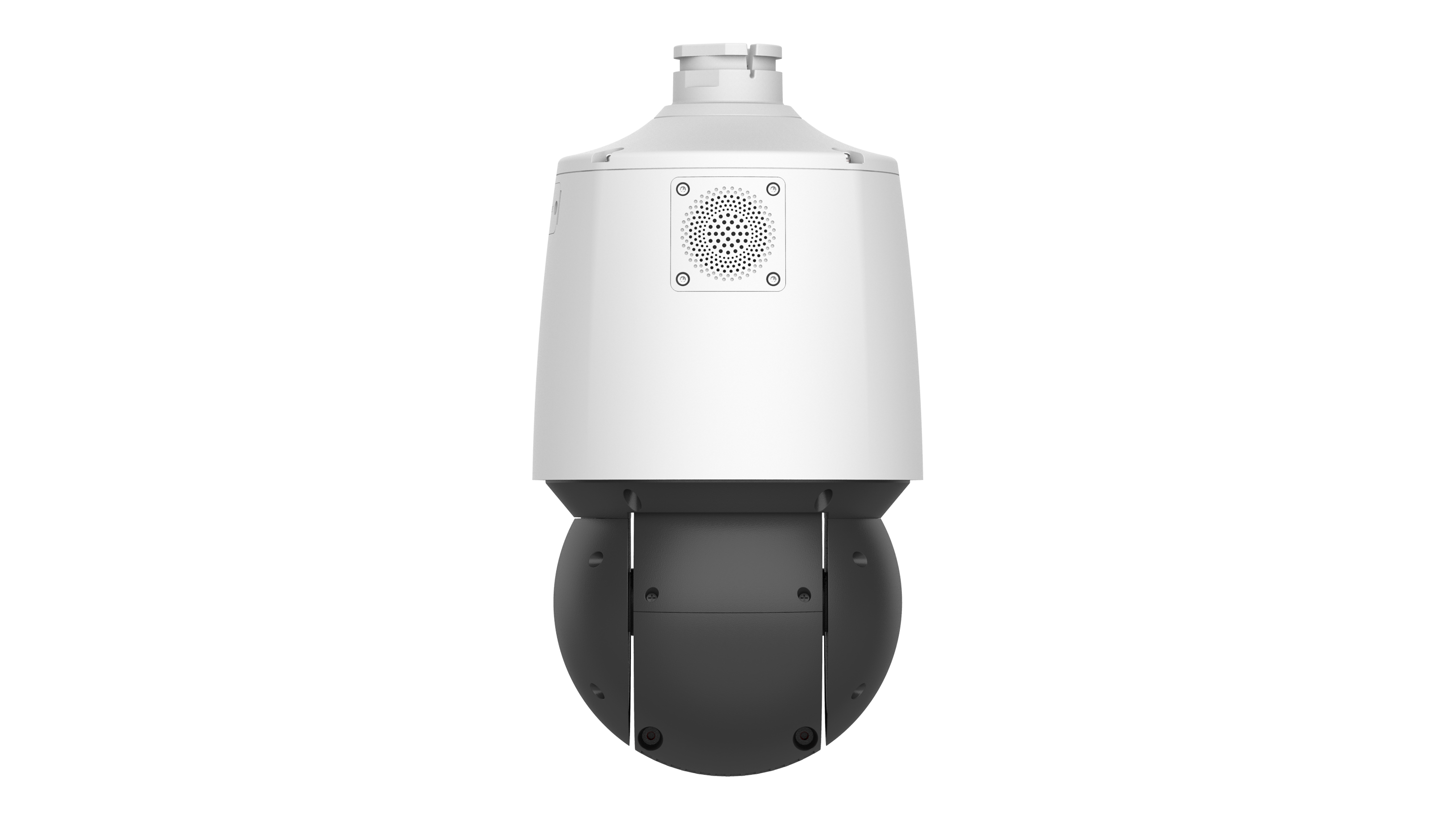

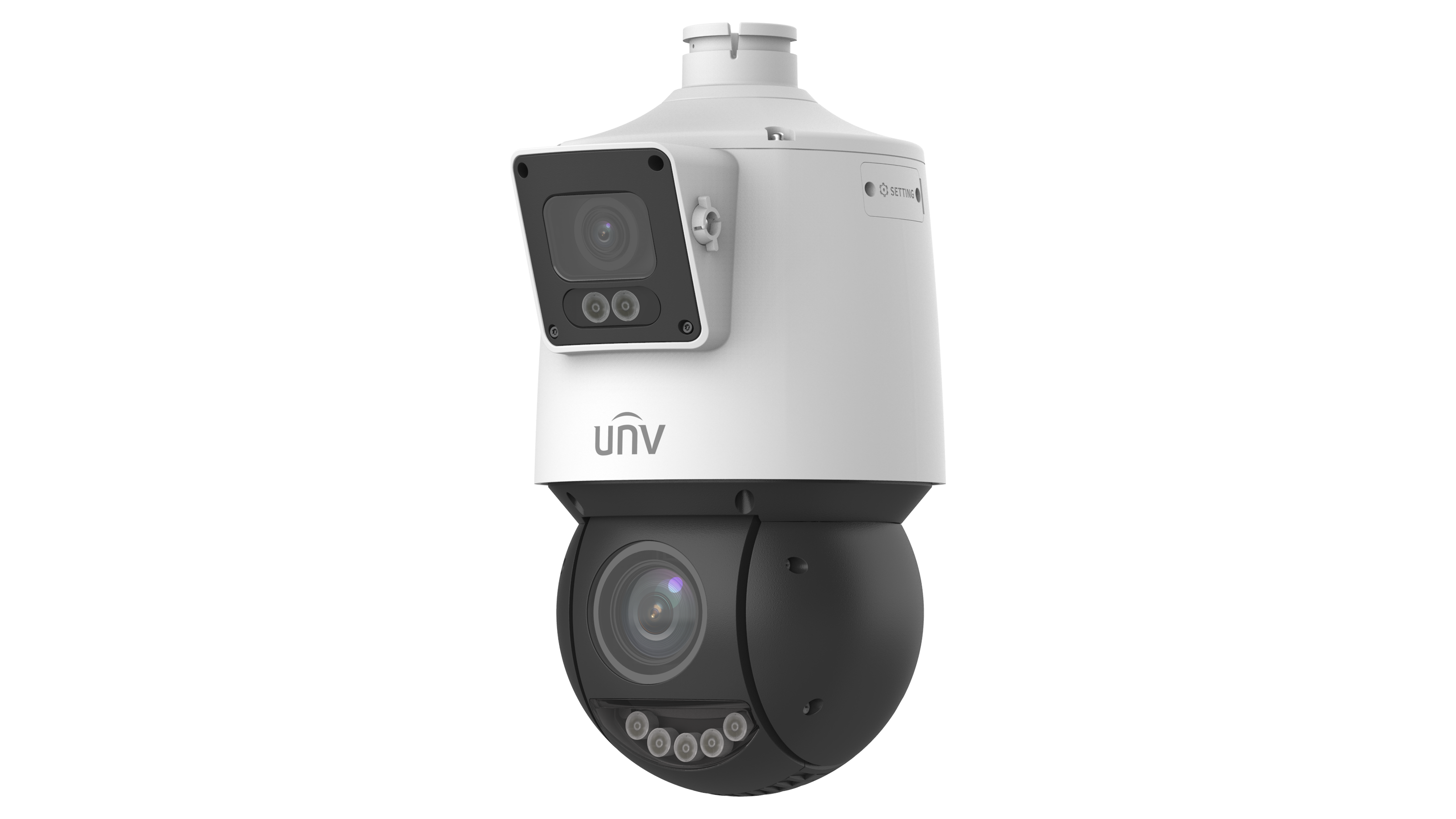

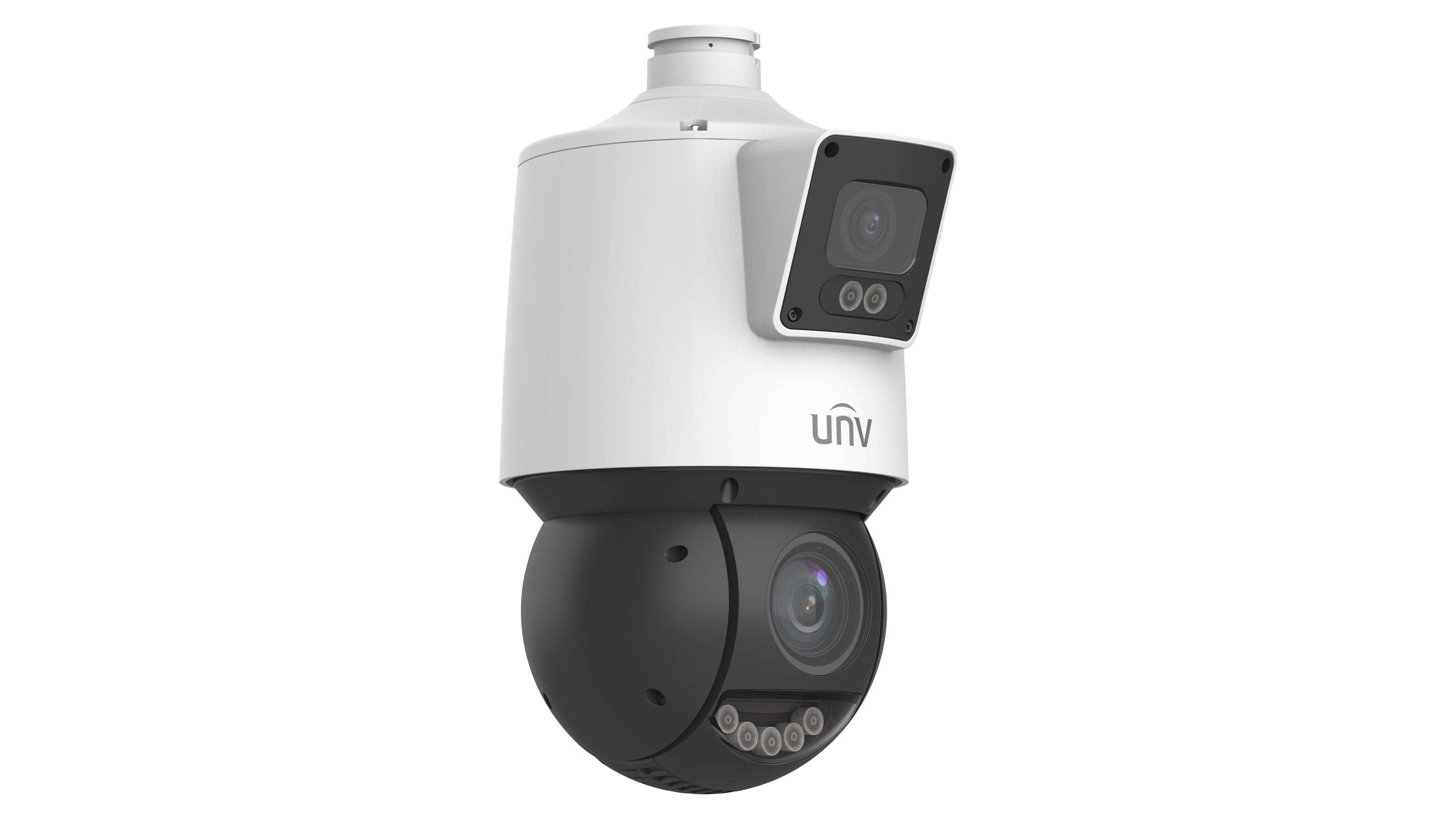

4MP IP CAMERA DUAL LENS IPC94144SFW-X25-F40C
(UNV)
4MP+4MP 25X ColorHunter MultiView Dual-light Network PTZ Camera
• Fixed camera and PTZ camera integration, dual-channel with one IP, provides overall view and detailed view at the same time
• Ultra 265, H.265, H.264, MJPEG
• 25X optical zoom of PTZ channel allows for closer viewing of subjects
• Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
• automatic selection of best snapshots, supports face detection masked area
• People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
• PTZ channel can be linked to fixed channel's smart intrusion prevention to track the objects triggering the rule
• Supports sound and light warning, makes warning and alarming more noticeable
• LightHunter technology ensures ultra-high image quality in low illumination environment
• IR and warm light illumination to deal with different scenes and achieve full-color illumination
• DC 12 V, PoE+ (IEEE 802.3at) power supply
• Alarm I/O: 2/1, audio I/O: 1/1
Camera Sensors & Resolution
Channel 1 (Panorama): 1/1.8" CMOS, 4 MP
Channel 2 (Detail): 1/2.7" CMOS, 4 MP
Min. Illumination
Channel 1: Color: 0.0005 Lux (F1.0, AGC ON), 0 lux with IR
Channel 2: Color: 0.003 Lux (F1.5, AGC ON), 0 lux with IR
Day/Night / Shutter / WDR
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 to 1/100000 s
WDR / S/N: 120 dB / >56 dB
Lens Specs
Channel 1 (Panorama): Focal Length: 4.0 mm | Iris: F1.0 | Field of View: H: 94.9°, V: 51.5°, D: 116.7°
Channel 2 (Detail - PTZ): Focal Length: 4.8 to 120 mm (25X Optical Zoom) | Iris: F1.5 to F3.8 | Field of View: H: 55.46° to 3.09°, V: 32.94° to 1.73°, D: 68.22° to 3.80°
DORI Distance
Channel 1 (Panorama): Detect: 90.0 m | Observe: 36.0 m | Recognize: 18.0 m | Identify: 9.0 m
Channel 2 (Detail): Detect: 123.8 m to 2475.0 m | Observe: 43.2 m to 1080.0 m | Recognize: 21.6 m to 540 m | Identify: 10.8 m to 270 m
PTZ Settings (Channel 2)
Pan / Tilt Range: Pan: 360° (Endless) | Tilt: -15° to 90° (Tilt Range: 18°±5°)
Pan / Tilt Speed: Pan: 0.1°/s to 80°/s | Tilt: 0.1°/s to 80°/s
Presets & Patrols: 1024 Presets | 16 Preset Patrols (max 64 presets each) | 16 Route Patrols | 16 Recorded Patrols
Patrol Stay Time / Home Position: 15 s to 1800 s / Support
Video Compression & Frame Rate
Video Compression: Ultra 265, H.265, H.264, MJPEG | Video Bit Rate: 128 Kbps to 16 Mbps | U-code: Support
Channel 1 Stream: Main: 4 MP @30 fps | Sub: 720P @30 fps | Third: D1 @30 fps
Channel 2 Stream: Main: 4 MP @30 fps | Sub: 1080P @30 fps | Third: D1 @30 fps
OSD / ROI / Privacy Mask: Up to 8 OSDs / Support / Channel 1: 4 areas, Channel 2: 24 areas (max 4 per scene)
Intelligent & Smart Functions
Linkage Function: Support (Fixed lens triggers smart intrusion prevention to track target via PTZ)
Smart Intrusion Prevention: Cross line, intrusion detection (with human, vehicle and non-motor vehicle classification)
People Counting: Support people flow counting and crowd density detection
Exception Detection: Channel 1: Object Left Behind, Removed, Scene Change | Channel 2: Object Left Behind, Removed
Basic Detection / UMD: Motion, Audio, Tampering / Ultra Motion Detection Support
Image Settings
White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR | Flip: Normal, Vertical, Horizontal, 180°
HLC / BLC / Smart IR / Defog: Support / Support / Support / Digital defog
Heatwave Reduction: Support
Illuminator
Channel 1 (Panorama): Warm Light (Supplemental) | Distance: 30 m (98.4 ft.)
Channel 2 (Detail): IR Light | Distance: 100 m (328.1 ft.) | Wavelength: 850 nm
Light Control: Auto/Manual
Audio & Interfaces
Audio Compression / Bitrate: G.711U, G.711A / 128 Kbps | Two-way Audio & Suppression: Support | Sampling Rate: 16 kHz
Audio I/O: 1 Input (1 kΩ, 2.5 V [p-p]), 1 Output (600 Ω, 2.5 V [p-p])
Alarm I/O / Serial Port: 2/1 / 1 × RS485
Built-in Speaker: Support (Built-in Mic: N/A)
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Storage & Network Protocols
Storage: Edge: MicroSD (up to 512 GB) | Network: ANR
Protocols: SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host / Security: Up to 32 users (3 levels) / TLS 1.3, TLS 1.2, Password Protection, HTTPS Encryption, Export Logs
Client / Browser: EZStation, UNV-Link, UNV-Link Pro / IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Certification & General
Certifications: EMC (CE-EMC, FCC), Safety (CE LVD, UL), Environment (CE-RoHS), Protection (IP66)
Power / Power Interface: DC 12 V (±25%), PoE+ (IEEE 802.3at) / Ø5.5 mm coaxial power plug
Power Consumption: Max. 24 W
Dimensions / Weight: 304 mm × 195 mm × 163 mm (12.0" × 7.7" × 6.4") / 2.27 kg (5.00 lb.)
Environments: Working: -40 ℃ to 65 ℃ (Humidity ≤ 95%) | Storage: -40 ℃ to 70 ℃
Surge Protection / Reset Button: 4 KV / Support
Web Client Language: 22 Languages
