Input

• Voltage: 8–32 V⎓

• Current: up to 1 A

• Turn-on voltage: 8 V⎓ ± 2.5%

• Turn-off voltage: 7–7.5 V⎓ (depends on the load)

Output

• Voltage: 4.8 V⎓ ± 5%

• Current: up to 1.5 A

Installation & Environment

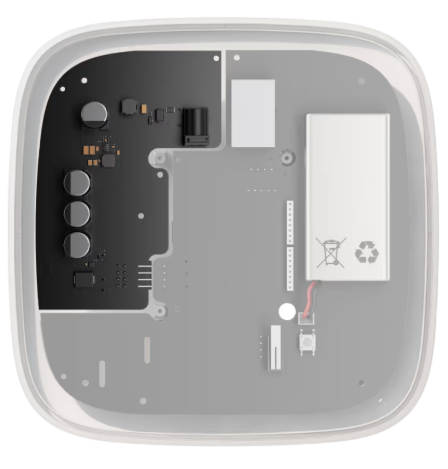

• Installation method: Into the hub or range extender enclosure by replacing the bundled power supply board.

• Operating temperature range: -10 °C to +40 °C

• Operating humidity: up to 75%

Connection & Physical Dimensions

• Connector slot: 6.5 × 2 mm (Power jack, female)

• Connector: 5.5 × 2.1 mm (Power jack, male)

• Board dimensions: 98 × 70 × 17 mm

• Weight: 26 g

Complete Set

• 12–24V PSU (Type A)

• Terminal adapter

• Quick start guide
