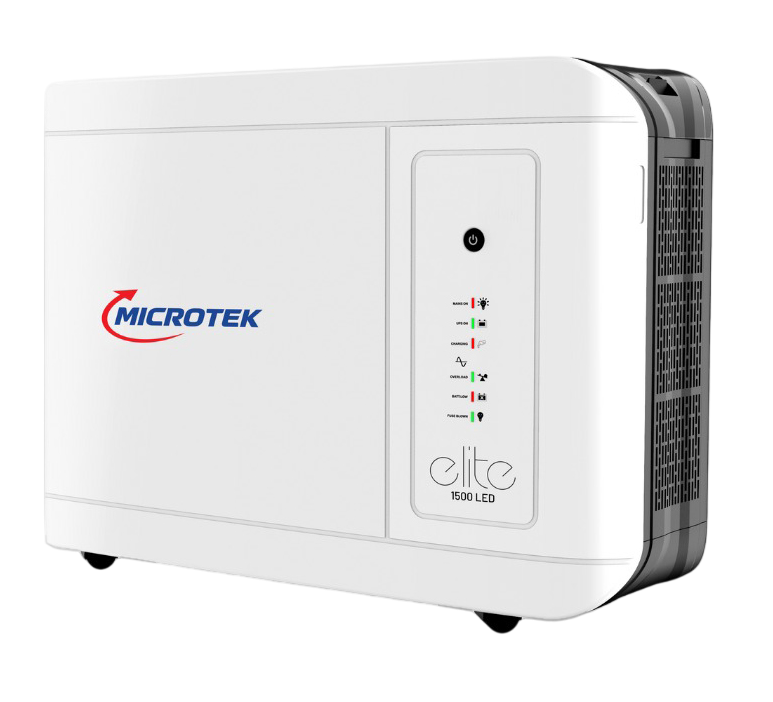

MTKTV1K5S Elite UPS Inverter- 1500 LCD 12V SW ( 100V - 300V )
(MICROTEK)
| Product | ELITE 1500 LCD 12V SW | ELITE 1500 12V SW LED |
|---|---|---|
| Input Voltage | Inverter Mode: 100V - 300V, UPS Mode: 180V - 260V | Inverter Mode: 100V - 300V, UPS Mode: 180V - 260V |
| Output Voltage | Mains Mode: Same as Input / UPS Mode: 210V ±10% | Mains Mode: Same as Input / UPS Mode: 210V ±10% |
| Output Frequency | UPS Mode: 50Hz ±0.1Hz | UPS Mode: 50Hz ±0.1Hz |
| Switching | Automatic (from Mains to UPS and from UPS to Mains) | Automatic (from Mains to UPS and from UPS to Mains) |
| Output Waveform | Mains Mode: Same as Input / UPS Mode: Pure Sinewave | Mains Mode: Same as Input / UPS Mode: Pure Sinewave |
| Batt. Charging Current | Constant Charging approx. 10% of the rated Battery Current in AH | Constant Charging approx. 10% of the rated Battery Current in AH |
| Charger | Power Factor Controlled Boost Technology | Power Factor Controlled Boost Technology |
| Efficiency | > 80% | > 80% |
| UPS Overload | 110% | 110% |
| UPS Short Circuit | 300% | 300% |
| UPS Transfer Time | ≤ 15 msec. | ≤ 15 msec. |
| Browns Out Mains Vol. | 100 ± 40V | 100 ± 40V |
| Technology | Micro Computer Based Intelligent Control Design | Micro Computer Based Intelligent Control Design |
| Auto Reset Feature | Yes | Yes |
| Operating Temp. | 0°C ~ 45°C | 0°C ~ 45°C |
