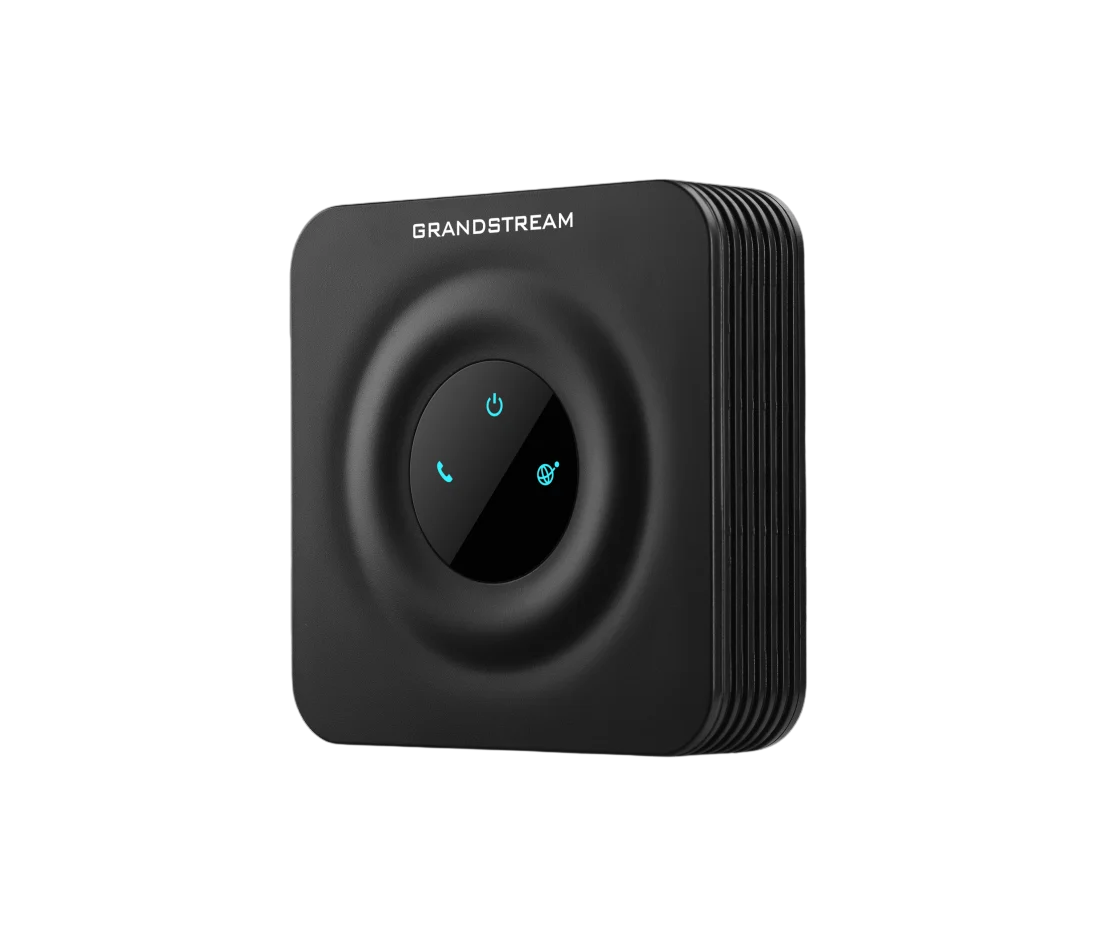

HT 801
(GRANDSTREAM)
Supports 1 SIP profile through a single FXS port and a single 10/100Mbps port
TLS and SRTP security encryption technology to protect calls and accounts
Automated provisioning options include TR-069 and XML config files
Supports 3-way voice conferencing
Failover SIP server automatically switches to secondary server if main server loses connection
Supports T.38 Fax for creating Fax-over-IP
Supports a wide range of caller ID formats
Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
Supports advanced telephony features, including call transfer, call forward, call-waiting, do not disturb, message waiting indication, multilanguage prompts, flexible dial plan and more
Telephone Interfaces
• 1 × FXS Port.
Network Interfaces
• 1 × RJ45 Ethernet Port (10/100 Mbps, Auto-Sensing).
LED Indicators
• Power, Internet & Phone LEDs.
Reset Button
• Factory Reset Button.
Telephony Features
• Caller ID, Call Waiting, Call Transfer, Call Forward, Hold, Do Not Disturb and 3-Way Conference.
Voice Codecs
• Supports G.711, G.722, G.723.1, G.729A/B, G.726-32, iLBC and Opus.
Fax Support
• T.38 Group 3 Fax Relay with automatic G.711 Fax Pass-through.
Caller ID Support
• Bellcore Type 1 & 2, ETSI, BT, NTT and DTMF-based Caller ID.
Network Protocols
• SIP, TCP/IP, UDP, RTP/RTCP, HTTP/HTTPS, DHCP, DNS, NTP, SSH, Telnet, TLS, SRTP, SNMP and TR-069.
QoS
• Layer 2 (802.1Q/802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS.
Security
• SRTP, TLS, HTTPS and Secure SIP (SIPS).
Management
• Web-based Management, SSH, Syslog and Secure Auto Provisioning.
Power Supply
• Input: 100–240VAC, 50/60Hz.
• Output: 5V DC, 1.0A.
Dimensions
• 100 × 100 × 29.5 mm.
Weight
• 102 g.
Operating Environment
• Operating Temperature: 0°C to 40°C.
• Storage Temperature: -10°C to 60°C.
• Humidity: 10%–90% (Non-condensing).
Compliance
• FCC, CE, RCM and ITU-T K.21 Certified.
