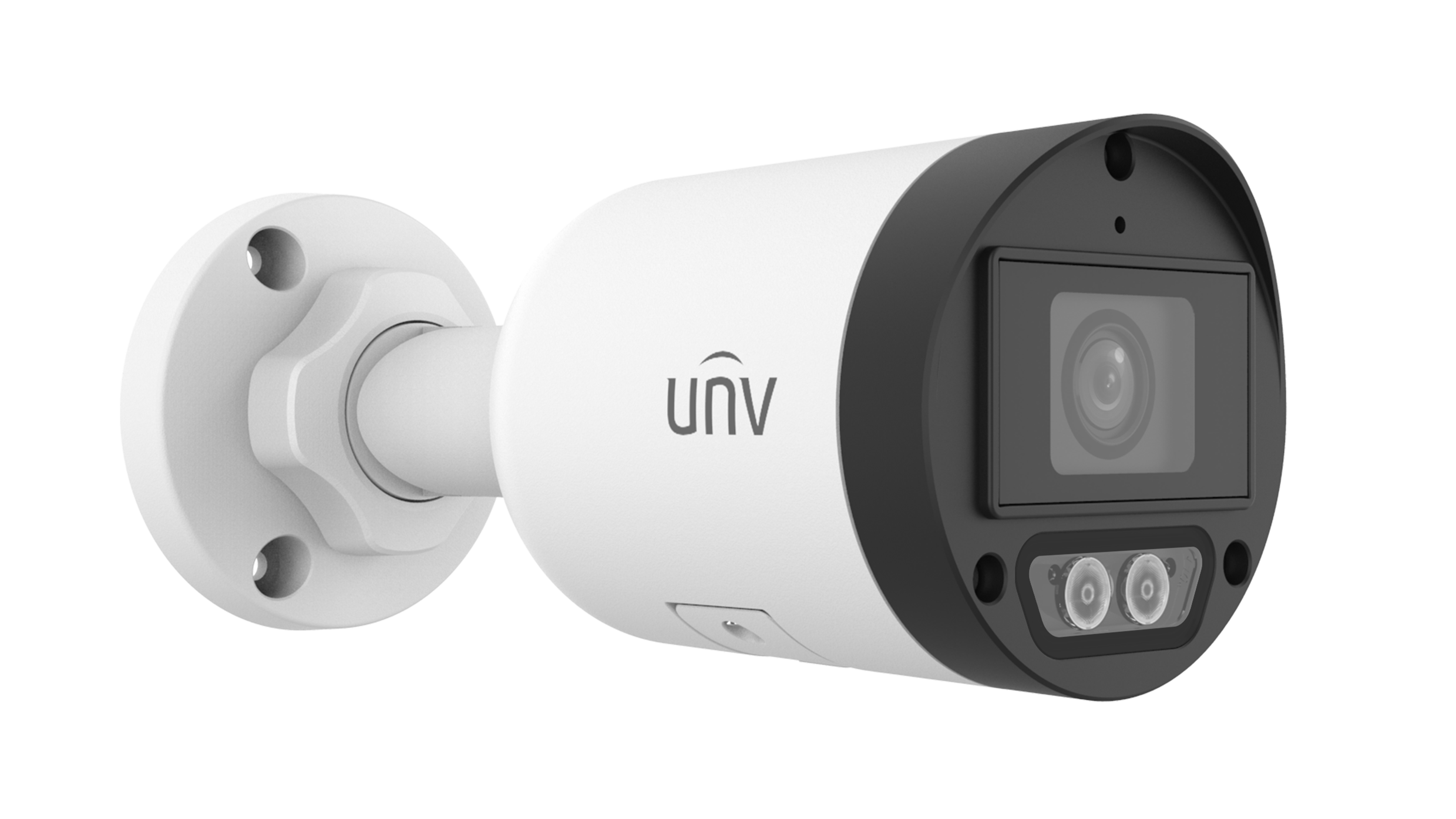

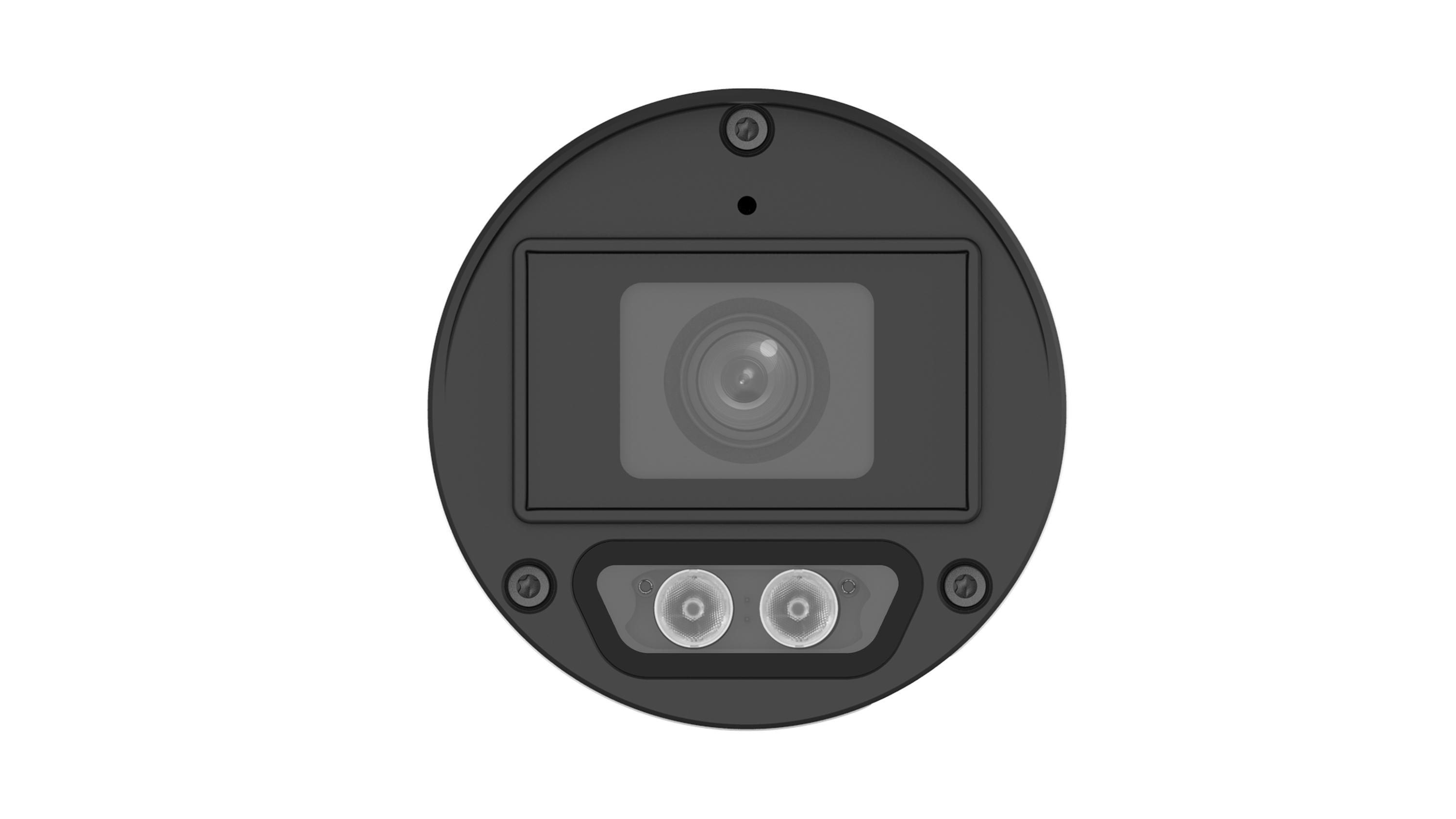

IPC2124LB-AF28K-DL / IPC2124LB-AF40K-DL

Description

Max Resolution

• 4 MP

Sensor

• 1/3.0" CMOS

Min. Illumination

• Color: 0.01 Lux (F1.6, AGC ON), 0 Lux with IR

Day/Night / Shutter

• Day/Night: IR-cut filter with auto switch (ICR)

• Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

• Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

S/N / WDR

• S/N: >52 dB, WDR: DWDR

Lens Specs

• Focal Length: 2.8 mm / 4.0 mm

• Iris Type: Fixed, Iris: F1.6

• Field of View (2.8 mm): H: 95.1°, V: 51.6°, D: 111.6°

• Field of View (4.0 mm): H: 79.0°, V: 42.3°, D: 85.1°

DORI Distance (2.8 mm)

• Detect: 63.0 m (206.7 ft.)

• Observe: 25.2 m (82.7 ft.)

• Recognize: 12.6 m (41.3 ft.)

• Identify: 6.3 m (20.7 ft.)

DORI Distance (4.0 mm)

• Detect: 90.0 m (295.3 ft.)

• Observe: 36.0 m (118.1 ft.)

• Recognize: 18.0 m (59.1 ft.)

• Identify: 9.0 m (29.5 ft.)

Illuminator

• Supplemental Light: Dual light

• Illumination Distance: IR: 30 m (98.4 ft) | Warm Light: 30 m (98.4 ft)

• Wavelength: 850 nm

• IR On/Off Control: Auto/Manual

Video Compression & Frame Rate

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• H.264 Code Profile: Baseline profile, Main profile, High profile

• Main Stream: 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps

• Sub Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps

• Video Bit Rate: 128 Kbps to 6144 Kbps

• U-code / ROI: Support / Support

• Video Stream: Dual streams{C}{C}

Image Settings{C}{C}

• OSD: Up to 4 OSDs{C}{C}

• Privacy Mask: Up to 4 areas{C}{C}

• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2{C}{C}

• Digital Noise Reduction: 2D/3D DNR{C}{C}

• Smart IR: Support{C}{C}

• Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise{C}{C}

• HLC / BLC: Support{C}

• Defog: Dig{C}ital defog (Dewarping: N/A)

Events & Functions

• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection

• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

• Audio Compression: G.711U, G.711A

• Audio Bitrate: 64 Kbps

• Two-way Audio: N/A (Only Built-in Mic: Support)

• Suppression: Support

• Sampling Rate: 8 kHz

Storage

• Edge Storage: MicroSD, up to 512 GB

• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP

• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK

• User/Host: Up to 32 users, 2 user levels: administrator and common user

• Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF{C}{C}

• Client: EZStation, APP{C}{C}{C}{C}

• Web Browser: Plug-in required: IE 10+, Chrome 45+, F{C}irefox 52+, Edge 79+. Plug-in free: Chrome 57+, Fir{C}efox 58+, Edge 16+{C}{C}

Interface{C}{C}

• Built-in Mic: Support{C}{C}

• Built-in Speaker / Audio I/O / Alarm I/O / Serial{C} Port / WIFI: N/A{C}

• Network: 1 × RJ45 10 M/{C}100 M Base-TX Ethernet

• Video Output: N/A

Certification

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B)

• Safety: CE LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

• Protection: IP67 (IEC 60529)

General

• Power: DC 12 V±25%, PoE (IEEE 802.3af){C}{C}{C}

• Power Consumption: Max. 2.8 W{C}{C}{C}

• Power Interface: Ø5.5 mm coaxial power plug{C}{C}{C}

• Dimensions: 162 mm × 67 mm × 67 mm (6.4" × 2.6" × 2.6") (L × W × H)

• Weight: 0.24 kg (0.53 lb)

• Material: Metal + Plastic

• Working / Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

• Surge Protection: 4 KV

• Reset Button: N/A

• Web Client Language: 4 Languages: English, Russian, Spanish, Vietnamese
